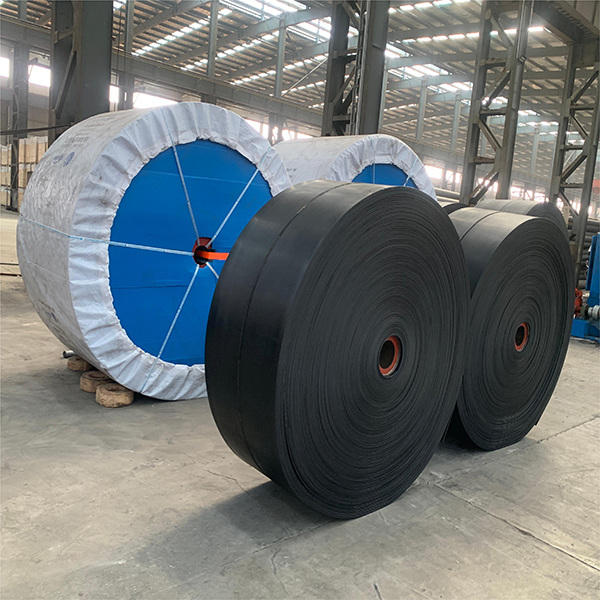

Types of Mining Conveyor Belts: A Complete Classification Guide
Conveyor belts are the circulatory system of any mining operation. Understanding the different types available — and knowing which one to specify for a given application — is essential for purchasing managers, plant engineers, and maintenance teams alike. This guide provides a structured overview of how mining conveyor belts are classified, covering environmental suitability, structural composition, strength grading, and dimensional standards.
Classification by Application Environment
The operating environment is the first and most decisive factor in conveyor belt selection. Different conditions demand fundamentally different rubber compounds and reinforcement structures.
Ordinary Rubber Conveyor Belt: The general-purpose workhorse. Suitable for non-aggressive, ambient-temperature material handling applications across coal, aggregate, and mineral processing.
Heat-Resistant Conveyor Belt: Engineered for high-temperature material transport, such as hot clinker in cement plants, sintered ore in steel mills, and coke in foundries. These belts use specially formulated cover rubber that resists thermal degradation and hardening.
Cold-Resistant Conveyor Belts: Designed to maintain flexibility and impact resistance in sub-zero environments. Essential for open-pit mining operations in cold regions where standard rubber compounds would become brittle and crack.
Oil-Resistant Conveyor Belts: Formulated with nitrile-based rubber compounds that resist swelling and deterioration caused by mineral oils, grease, and petroleum-based materials. Commonly used in oil sands, chemical plants, and recycling facilities.
Acid and Alkali-Resistant Conveyor Belt: Built to withstand corrosive chemical environments. The cover rubber is specially compounded to resist degradation from acidic or alkaline materials, making these belts suitable for fertilizer production, chemical processing, and certain hydrometallurgical applications.
Food-Grade Conveyor Belt: Manufactured from non-toxic, oil-resistant materials that meet food safety standards. Used in food processing and pharmaceutical applications where material purity is paramount.
Classification by Tensile Strength
Tensile strength directly determines how much load a conveyor belt can carry and over what distance. The classification is straightforward:
Standard Canvas Conveyor Belt: Uses conventional cotton or synthetic fabric plies for light to medium-duty applications.
High-Strength Canvas Conveyor Belt: Employs reinforced fabric layers for medium to heavy-duty material handling where higher tension ratings are required.
Classification by Structural Material
The internal reinforcement structure defines a conveyor belt's strength, elongation behavior, troughability, and impact resistance. This is the most technically significant classification system.
Nylon Conveyor Belt
Nylon conveyor belts use nylon fabric as the carcass material, offering excellent troughability, high tensile strength, and good impact absorption. Their relatively higher elongation compared to polyester makes them well-suited for medium-distance conveying systems where flexibility is prioritized. Nylon also provides strong resistance to moisture and mildew.
Polyester Conveyor Belt
Polyester conveyor belts feature polyester (EP) fabric carcasses that deliver low elongation, high modulus, and excellent dimensional stability. These characteristics make polyester belts ideal for long-distance, high-tension applications where minimal stretch under load is critical. They also offer good heat resistance and water resistance.
Steel Wire Conveyor Belt
Steel wire conveyor belts represent the highest tier of tensile strength. Steel cables arranged longitudinally within the rubber matrix provide exceptional resistance to elongation, enabling single-flight conveyor lengths of tens of kilometers. These belts are the standard choice for long-distance, high-capacity mining operations. Their high impact resistance and excellent troughability make them indispensable for primary ore transport in large-scale mines.
Flame Retardant Conveyor Belt
Underground mining operations mandate the use of flame retardant conveyor belts that meet stringent safety standards. These belts are designed to resist ignition and prevent flame propagation along the belt surface. The two main variants are:
PVC Solid-Woven Conveyor Belt: Features a solid-woven carcass impregnated with PVC. Offers good flame retardancy and anti-static properties with moderate tensile strength. Widely used in underground coal mines.
PVG Solid-Woven Conveyor Belt: Similar in construction to PVC belts but with a nitrile rubber covering layer on top of the PVC-impregnated carcass. The rubber cover provides improved friction, better abrasion resistance, and longer service life compared to standard PVC belts.
Steel Wire Core Flame Retardant Conveyor Belt: Combines the high tensile strength of steel wire reinforcement with flame retardant rubber compounds, meeting both strength and safety requirements for high-capacity underground conveyors.
Cotton Canvas Conveyor Belt
The traditional standard, using cotton fabric plies. While largely superseded by nylon and polyester belts in demanding applications, cotton canvas belts still serve in light-duty, low-tension scenarios where cost is the primary concern.
PVC and PVG Solid-Woven Belt Strength Grading
For mining-grade PVC and PVG solid-woven flame retardant conveyor belts, specifications follow a standardized strength grading system paired with belt width. The strength grades range from Level 4 through Level 16, corresponding to the following tensile strength ratings:
| Grade | Strength Rating |
|---|---|
| 4 | 680S |
| 5 | 800S |
| 6 | 1000S |
| 7 | 1250S |
| 8 | 1400S |
| 9 | 1600S |
| 10 | 1800S |
| 11 | 2000S |
| 12 | 2240S |
| 13 | 2500S |
| 14 | 2800S |
| 15 | 3100S |
| 16 | 3400S |
Standard belt widths range from 500 mm to 1800 mm, with common increments including 650 mm, 800 mm, 1000 mm, 1200 mm, 1400 mm, and 1600 mm. The correct combination of strength grade and width depends on the conveyor's designed capacity, belt speed, material density, and installation geometry.
Choosing the Right Conveyor Belt for Your Operation
Selecting the optimal conveyor belt requires balancing three critical dimensions:
Environmental conditions — temperature extremes, chemical exposure, and moisture levels dictate the rubber compound formulation.
Mechanical demands — required tensile strength, impact resistance, and troughability determine the carcass material and construction.
Safety requirements — underground mining applications demand certified flame retardant conveyor belts that comply with national safety standards.
